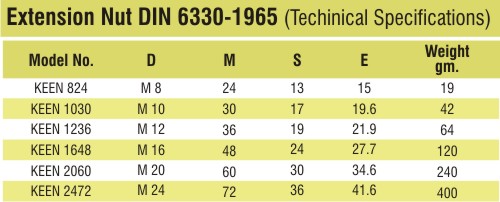

Features DIN 6330-1965 • C 45 heat treated to 20 - 28 HRC • Blackodised or yellow passivated. Application : |

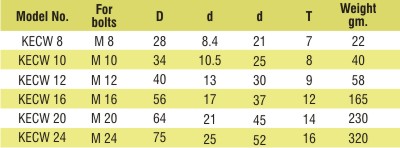

Features : • Alloy Steel heat treated to 35 - 40 HRC • Blackodised or yellow passivated. Application : • As illustrated. • In the construction of fixtures having special application as spacer or Clamping element because it could be swung out of the way and the part can be inserted or removed quickly. |
 |

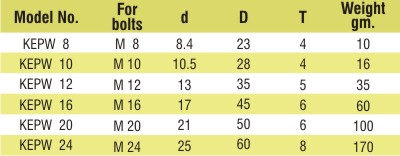

PLAIN WASHER
Features : • Alloy steel heat treated to 35-40 HRC • Blackodised or yellow passivated Application : • As illustrated • Widely Used in Most of the clamping systems |
Application : |
