CLAMPING ELEMENTS

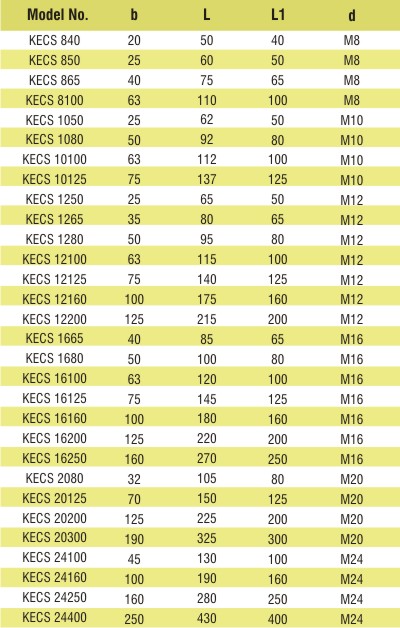

CLAMPING STUDS

Features

• C45 Steel toughened to 22-28 HRC
• Blackodised or yellow passivated.
• Rolled threads.

Application :

• Used in jig fixtures hydraulic equipment as one of the clamping
elements and also in Automobile and Machine buliding Industries.
• As illustrated

TEE BOLTS

T - Bolt Forged Head
IS 2014 - 1977

Features
• C45 Heat treated to 20 - 28 HRC.
• Blackodised or yellow passivated.
• Rolled Threads

Application
• As illustrated.
• Useful for the machines having "T" slots.

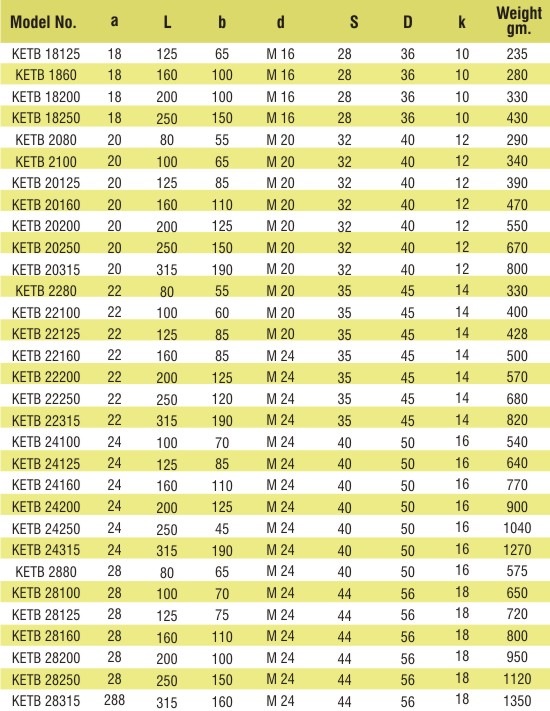

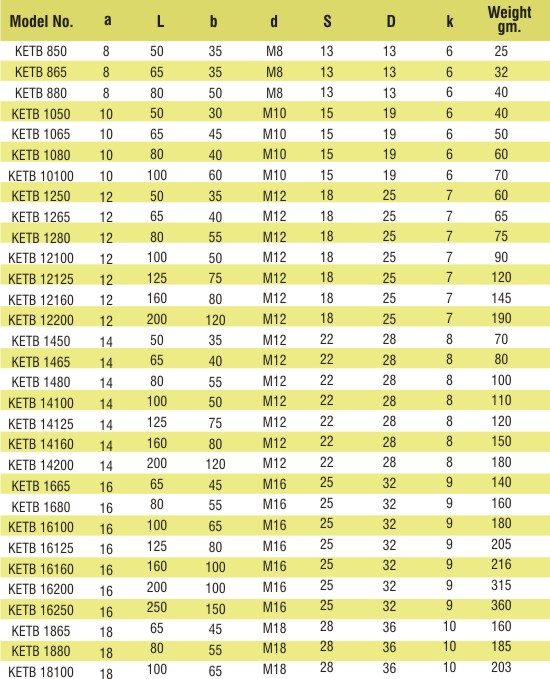

T - Bolt IS 2014 - 1977 (Techinical Specifications)

T-NUTS

IS 2015 -1977

Features :
•C45 heat treated to 22 - 28 HRC
•Blackodised or yellow passivated.

Application :
• As illustrated.
• Useful for the machines having "T" slots,] fixtures, hydraulic elements, assorted setting elements and adopters.

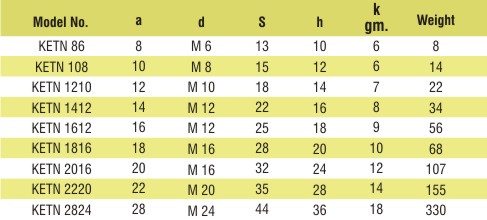

T- Nut is 2015 -1977 ( Techinical Specifications)

HEX NUT

Hex Nut DIN 6330-1965 Features : • C45 heat treated to 20 - 28 HRC • Blackodised or yellow passivated. Application : • As illustrated. • Widely used on most of the machines, jig-fixtures, hydraulic equipments etc.
