Features :
Plain Centres with Morse Taper & Carbide Tipped Centres

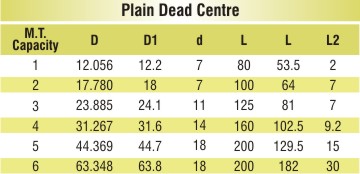

Plain Centres with Morse Taper
• The Plain Centres are made from carbon-chromium alloy steel, hardened to 62 HRC to withstand wear. The Plain Centres have a high surface finish to allow maximum bearing on master gauges. The runout with respect to cone and taper angle is kept within 0.005 mm.
• The Carbide tipped Centres (CT Centres) are made of alloy steel shank fitted with tungsten-carbide tips by brazing. The shanks are made of low carbon steel hardened to 40 HRC. The cones where he carbide tips are mounted are given a fine surface finish.
Scope of Supply : ;The CT Centres have carbide tips, fitted on the tront cones, as per IS Specifications. Special tips can also be supplied according to specific customer requirments, eg., half carbide tips. The CT Centres are available with Morse Taper shanks, in sizes from MT-1 to MT-6, and cone angle of 60". Other cone angles - 30° or 45" can also be supplied.

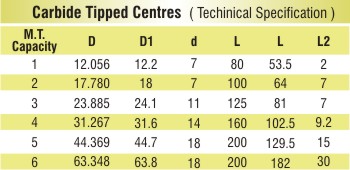

Technical Specifications
GRINDING MACHINE VICE

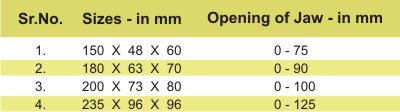

Precision Grinding Vice
• Precesion Grinding Vices can be used for high accuracy light machining, grinding operation, inspection and marking of precision components.
• Vices can be used, standing on its base, sides, end or top.
• Guaranteed + 0.005mm for parallelism, flatness & squareness with
the vice in any position.
• It is mannufactured from high grade oil hardening steel, hardened &
tempered to ensure stability & accuracy throught the unit's working life.
• Levelling Jacks can be used as an adjustable support block for clamps and as a stopper or levelling block in fixtures or machines.
• It can also be used for levelling of surface plates or other heavy
workpieces.
• Its unique design does not allow levelling spindle to rotate while
adjustment, hence it is suitable for fine level adjutments.
• It is available with/to, conical & V-Sectionat head for other applications.
